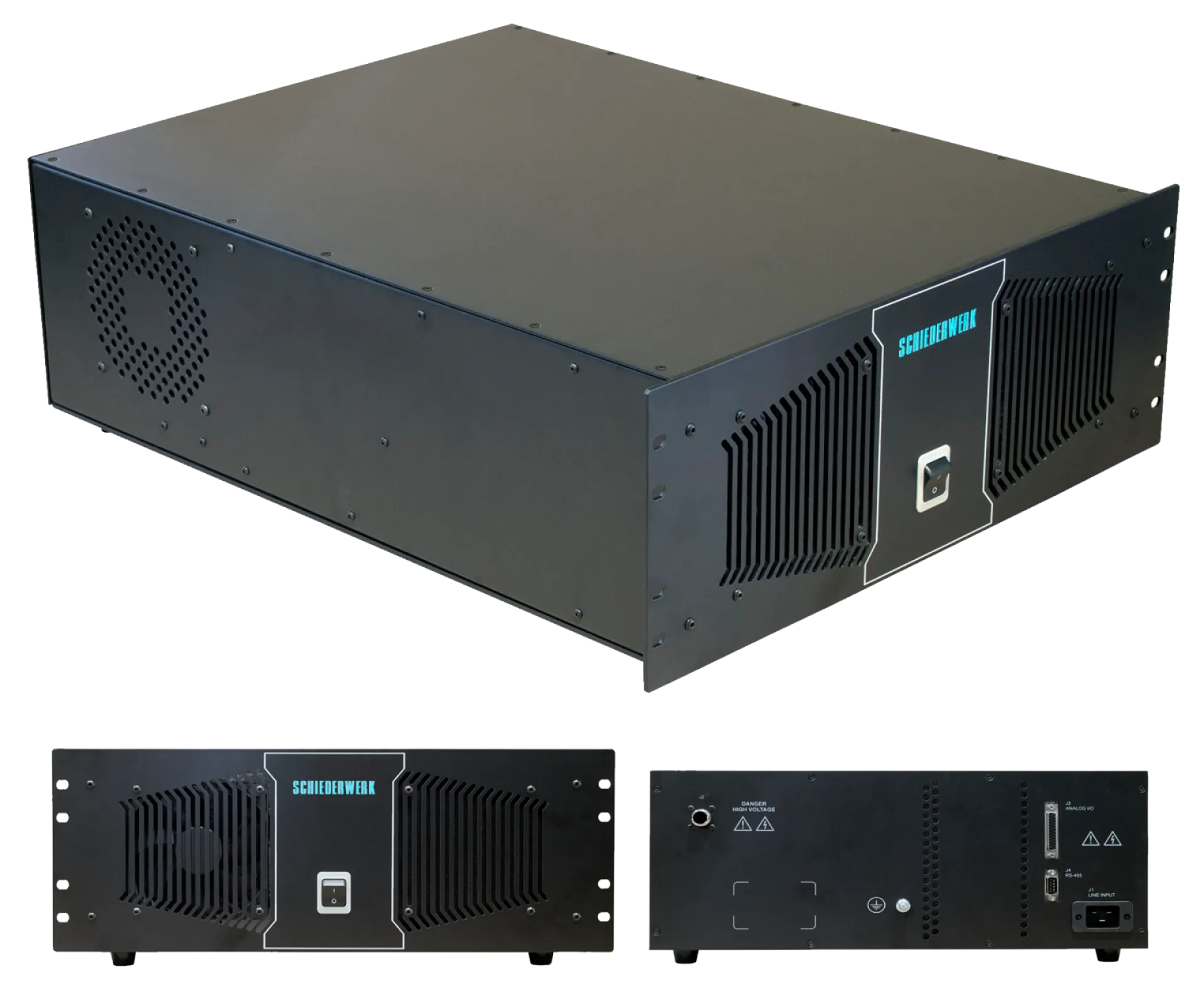

The HVPS 60-30 DC high-voltage power supply combines outstanding performance with state-of-the-art control technology. Thanks to its flexible integrated control system, the unit operates with minimal ripple and exceptionally low noise. Its air-cooled design ensures reliable continuous operation, while fast response times, precise control, and extremely low leakage currents guarantee maximum efficiency and safety.

• Single-phase AC input

• Continuous operation at full rated power

• Analog remote interface (25-pin connector) and digital interface (RS-485)

• Programmable voltage and current from 0 to 100%

• Outputs for monitoring voltage and current

• Short-circuit and overload protection

• Operating temperature range from -20 °C to +40 °C

• 4U 19″ rack-mount design

• Arc protection with integrated arc counter

Technical Highlights

Maximum Performance

The HVPS 60-30 DC high-voltage power supply stands out with its reliable and flexible usability in demanding applications. Its single-phase AC input enables easy integration into existing power supply systems, while continuous operation at full rated power ensures maximum efficiency and stability.

Full Control

For convenient and precise operation, the unit features comprehensive interface options. In addition to an analog remote interface with a 25-pin connector, a digital RS-485 interface is available, allowing seamless integration into modern control and automation environments. Voltage and current can be flexibly programmed from 0 to 100%, complemented by integrated monitoring outputs for continuous supervision of all relevant operating parameters.

Maximum Safety

A comprehensive safety concept ensures reliable operation: short-circuit and overload protection, along with advanced arc protection featuring an integrated arc counter, safeguard both the system and the application.

Robust in Operation

The extended temperature range of -20 °C to +40 °C enables reliable operation even under challenging environmental conditions.

Compact Integration

The compact design allows for easy integration into standardized 19″ rack systems, making the HVPS 60-30 DC an ideal solution for industrial applications, test systems, and complex technical environments.

Technical Specifications (Excerpt)

• Max. continious system output power: 3,000 W

• Output voltage: 0 to +60 kV DC (ref PE)

• Output voltage stability:

static:

<0.005 % for input variation 187 – 264 V

<0.01 % +0.5 mV for 0 to 100 % output load variation

long term:

0.01 % per hour after 1/2h warm-up

0.05 % per 8 hours

• Output voltage repeatability: < 0,1 % rated

• Output voltage ripple: < 0.05 % rated + 1 V rms at full load

• Output current regulation: < 0.1 % above 8 kV; < 0.2 % below 8 kV
