The ares evo is an advanced final test manipulator designed for automated, precise, and highly reliable test head positioning in semiconductor test environments. Built specifically for final test applications, it combines a robust mechanical platform with automated motion control, helping manufacturers reduce setup time, minimize manual intervention, and improve repeatability across a wide range of testing configurations.

With automated movement in x, y, z, and additional rotational axes, ares evo enables seamless and accurate positioning of test heads. This significantly simplifies the testing process compared to conventional final test manipulators and helps save time, labor, and operating costs.

Automated positioning for efficient final test

Unlike conventional manipulators that rely heavily on manual adjustment, ares evo allows automated movement across multiple linear and rotational axes. This makes positioning faster, easier, and more repeatable while reducing the risk of human error during setup and changeover.

Its integrated vision control and absolute value encoders ensure that every motion is precise and controlled, preventing deviations that could affect the integrity of the semiconductor components under test. With the push of a button, ares evo can automatically reposition the test head for the next phase of testing, reducing manual workload and helping manufacturers stay on schedule in high-demand production environments.

Designed for durability and flexible integration

ares evo is built for final test applications and features a durable, robust design that can be implemented across a broad range of testing configurations. Despite its strong load-handling capability, the system is engineered for the lowest possible floor load and requires no counterweights.

Its small footprint is achieved through intelligent cable management via a vertical pillar, making it especially suitable for space-conscious test floor layouts.

To support different application requirements, ares evo is available in configurations with different motion concepts and load capacities:

Load capacity: 400 kg (882 lbs)
With motorized motion for the z-axis, with optional electrical x- and y-axis and twist
Load capacity: 750 kg (1,654 lbs)
With motorized motion for x-, y-, and z-axis, plus twist

This flexibility allows users to select the right configuration based on their individual setup and automation requirements.

ares evo autodock

The ares evo autodock option adds automated docking functionality and includes all core ares evo features. It enables one-button control for position changes and uses force-based stop control for reliable and repeatable operation.

With absolute value encoders, autodock supports seamless and precise automated finding and positioning of test heads. If the handler is equipped with autolock or a CUH lock system, docking may not be required, further simplifying the overall handling process.

Key benefits of ares evo autodock include:

One-button position change
Force-based stop control
Precise automated finding and positioning
High position repeatability
Reduced need for manual operation
Optional fully automatic mode via remote control

ares evo autosetup

The ares evo autosetup option is designed for applications where test equipment such as probers or handlers is frequently replaced or repositioned. It includes all ares evo core features and adds a vision camera system for automatic detection of the equipment position.

This significantly reduces setup time and helps avoid alignment errors, making autosetup especially valuable in environments with changing hardware configurations or frequent retooling.

Key benefits of ares evo autosetup include:

Automatic position detection of prober or handler
Reduced setup time
Lower risk of alignment errors
Improved repeatability across changing configurations

Motion and positioning performance

ares evo offers a wide range of controlled linear and rotational motion to support precise final test setup requirements:

Horizontal travel (x-axis): 200 mm (7.9")
Horizontal travel (y-axis): 440 mm (17.4")
Vertical travel (z-axis): 365 mm (14.4")
Tumble adjustment: 3°
Rotation: 180°
Twist: 180°
Theta adjustment: \pm 0.3°

These motion capabilities allow the manipulator to adapt accurately to individual setup conditions and test cell layouts.

Key benefits

Advanced final test manipulator for automated positioning
Automated movement in x, y, z, and additional rotational axes
Vision control and absolute value encoders for precise motion
Reduced setup time and less manual intervention
Improved repeatability and lower risk of human error
Durable and robust design for a wide range of configurations
Low floor load without counterweights
Small footprint through vertical cable management
Available with 400 kg or 750 kg load capacity
autodock option for automated position change and docking control
autosetup option with vision-based equipment detection
Optional fully automatic mode via remote control

The ares evo is a next-generation final test manipulator that combines robust mechanics, precise automated motion, and intelligent setup support in one high-performance platform. Whether configured with autodock, autosetup, or both, it helps semiconductor manufacturers improve efficiency, reduce manual effort, and achieve highly repeatable final test positioning in demanding production environments.

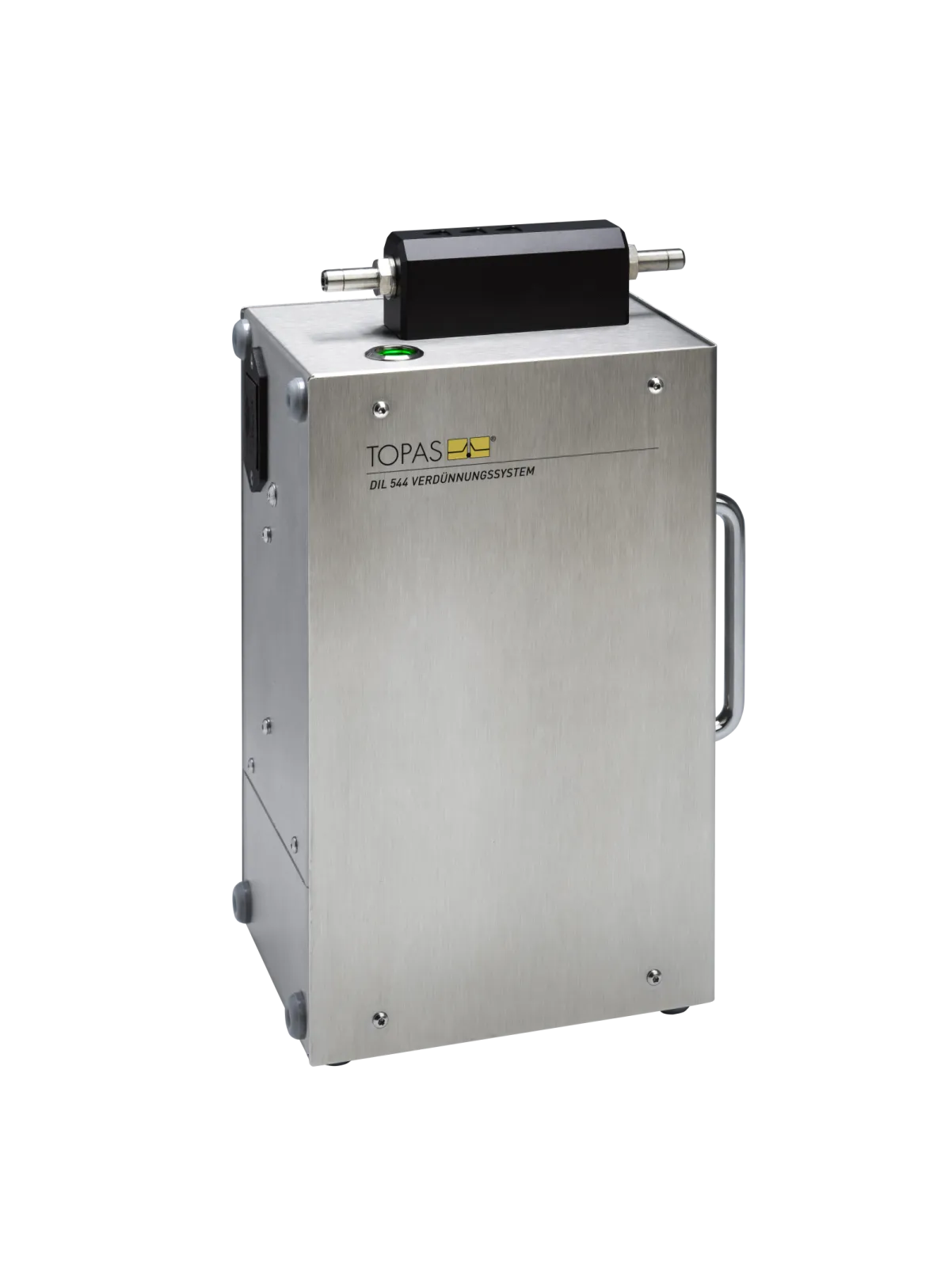

Dilution System DIL 544
